PCB assembly cost is not only based on board size or order quantity. It also depends on the BOM, component package types, placement density, soldering process, inspection needs, and testing requirements.
A low assembly quote can look attractive at first. But missing data, unclear substitutes, and late test requirements can increase the real cost later.
Buyers should understand what affects cost before sending a project for quotation. This helps reduce repeated questions, quotation changes, and production delays.
Start with the Project Files
Gerber files show the PCB structure. They help the supplier understand layer count, board outline, drill data, solder mask, and surface finish. They do not show every assembly detail.
BOM data has a direct impact on PCB assembly cost. The BOM should include manufacturer part numbers, packages, quantities, and reference designators. Missing part numbers slow down sourcing and quotation.
Pick-and-place files help check placement work. They show component position, rotation, and assembly side. Wrong rotation data can create placement errors during SMT assembly.
Assembly drawings help reduce questions before production. They show polarity, connector direction, special notes, and mechanical details. Clear drawings reduce the risk of wrong placement.

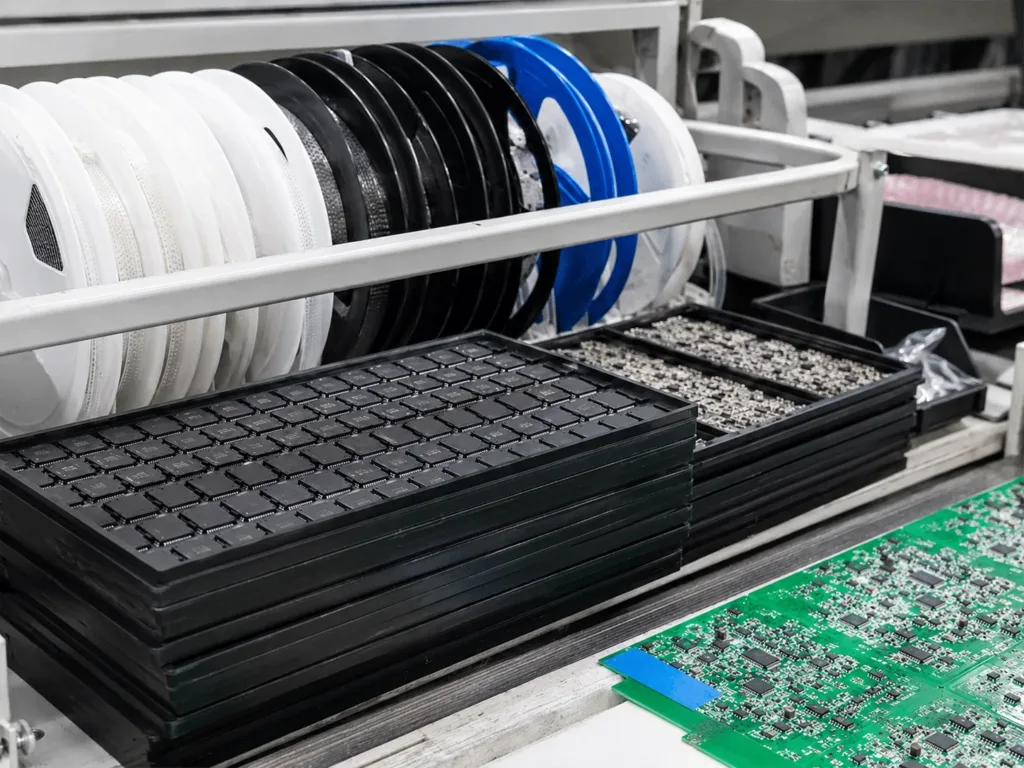

BOM Quality Affects Quotation Accuracy
A complete BOM makes the quotation faster and more accurate. The supplier can check stock, package type, sourcing risk, and approved substitutes.
A weak BOM creates hidden cost. If the BOM only lists values, the supplier must confirm package, tolerance, voltage rating, and manufacturer. This adds engineering and sourcing time.
Approved substitutes should be listed early. This is important when parts are out of stock or on long lead time. A substitute should match the package, rating, and function before purchasing.
Special components need extra review. Programmed ICs, moisture-sensitive parts, high-value chips, and customer-approved parts may need special handling. These requirements can affect cost and lead time.
| BOM Issue | Cost Impact | What Buyers Should Check |
|---|---|---|
| Missing part numbers | More sourcing time | Add full manufacturer part numbers |
| No approved substitutes | Possible sourcing delay | List approved alternatives |
| Unclear package | Placement or footprint risk | Confirm package and footprint |
| Special handling parts | Extra storage or process cost | Mark MSL, ESD, or programmed parts |
| Last-minute BOM change | Re-quotation or schedule delay | Freeze BOM before production |
A BOM review is not just a document check. It helps find sourcing and assembly risks before money is spent.
Component Package Types Change Assembly Cost
Standard SMT parts are usually easier to place. Common resistors, capacitors, and simple ICs often need less process setup.

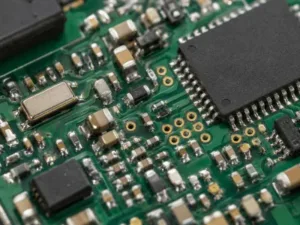

Fine-pitch components need more care. They require accurate solder paste printing, stable placement, and careful inspection. Small pitch errors can create bridges or weak joints.
BGA and QFN packages increase inspection needs. Their solder joints are hidden after reflow. X-ray inspection may be needed to check solder quality.
Through-hole parts add extra process steps. They may need wave soldering, selective soldering, or hand soldering. Each step adds labor, fixture needs, and inspection time.
Mixed assembly often costs more than simple SMT assembly. The board may need SMT placement, reflow soldering, through-hole insertion, manual work, and final testing.
SMT Complexity Affects Process Time
Component count affects placement time. More parts mean more feeder setup, machine time, inspection work, and material handling.
Placement density also matters. Dense boards need tighter process control. They also make inspection and rework more difficult.
Double-sided assembly adds process time. The board may need two SMT runs, two reflow steps, and extra handling. Components on both sides also increase inspection work.
Panel design can affect efficiency. A good panel helps the assembly line run smoothly. Poor panelization may increase handling time and reduce production efficiency.
Simple boards are easier to quote and build. Dense boards need more review before production starts.
Soldering Process Adds Different Costs
Reflow soldering is standard for SMT assembly. Cost depends on stencil setup, solder paste control, placement work, and reflow profile setup.
Wave soldering is used for many through-hole parts. It can be efficient for suitable designs. But it needs proper pallet design and process control.
Selective soldering is useful when through-hole parts sit near sensitive SMT components. It can reduce thermal risk, but it may add process cost.
Hand soldering is sometimes needed for odd parts or low-volume builds. It adds labor time. It also needs skilled operators and careful inspection.
Soldering cost depends on the process route. A mixed process usually costs more than a single SMT process.
Inspection and Testing Must Be Included Early
Inspection and testing should be discussed before quotation. If they are added later, the final cost may change.
AOI inspection checks visible defects. It can find missing parts, wrong polarity, bridges, tombstoning, and shifted components.
X-ray inspection checks hidden solder joints. It is useful for BGA, QFN, LGA, and other bottom-terminated packages.
ICT testing checks basic electrical connections. It may need a test fixture. Fixture cost should be considered for repeat production.
Functional testing checks the final board operation. It may include power-on tests, firmware checks, signal checks, or customer test fixtures.
| Requirement | Possible Cost Driver | Why It Matters |
| AOI inspection | Inspection program setup | Checks visible assembly defects |
| X-ray inspection | Extra inspection time | Checks hidden solder joints |
| ICT testing | Test fixture cost | Supports repeat production checks |
| Functional testing | Labor and fixture setup | Confirms product operation |
| Firmware programming | Programming time | Adds a production step |
Testing does not only add cost. It can reduce rework and field failure risk when the test plan is clear.
Order Quantity Changes the Unit Cost
Prototype orders often have higher unit cost. Setup work is spread across fewer boards. The supplier still needs file review, stencil setup, machine setup, and inspection.
Small batches can be useful for design validation. They help find BOM, placement, soldering, and testing issues before larger production.
Repeat production usually gives better cost control. The setup process is already known. Approved parts, test methods, and inspection steps are also clearer.
Volume production can reduce unit cost, but only when the design is stable. Late changes can remove this benefit. A BOM change or test change can restart parts of the process.
Buyers should compare cost by project stage. Prototype cost and production cost are not the same thing.
Rework Risk Can Increase Real Cost
Poor design data can create rework. Wrong polarity, missing placement notes, and unclear footprints can all cause assembly problems.
Unstable sourcing can also create rework. A substitute part may fit the footprint but fail the function. It may also affect thermal performance or reliability.
Weak solder joints may pass visual inspection but fail later. This is more common with poor paste control, uneven heating, or difficult packages.
Late testing changes can increase cost. If test steps are added after production, extra labor and fixtures may be needed.
The lowest quote is not always the lowest total cost. Rework, delay, and repeated inspection can change the real project cost.
What Buyers Should Prepare Before Quotation
A clear quotation needs clear project data. It also needs clear production expectations.
Build quantity should be stated early. Prototype, pilot run, and mass production quantities can have different cost structures.
Assembly scope should be clear. The supplier should know whether the project needs SMT only, through-hole assembly, box build, programming, coating, or testing.
Material responsibility should be defined. Buyers should state whether the project is turnkey, consigned, or partially consigned.
Inspection and testing requirements should be listed before quotation. This helps avoid cost changes after production starts.
For engineering review and quotation support, please send your Gerber files, BOM, assembly drawings, and quantity requirements to sales@toplinecircuit.com.
Planning Your Project
PCB assembly cost is easier to control when project data is complete. A clear BOM, stable design, approved substitutes, and defined test plan help reduce quotation changes.
Before production starts, review the files, component risks, assembly process, inspection needs, and test method. These checks help buyers compare suppliers with fewer surprises. They also help reduce delays, rework, and hidden cost during the first build.
