With the rapid development of 5G communication, millimeter-wave radar, high-speed servers, satellite communication, and AI data processing systems, high-frequency and high-speed chips now require much higher PCB performance. Standard FR4 circuit boards often experience signal loss, unstable impedance, and electromagnetic interference under high-frequency conditions, making them insufficient for modern RF and high-speed systems. Rogers RO4350B hybrid high-frequency PCB boards combine high-performance RO4350B materials with FR4 hybrid stack-up structures, providing an excellent balance between high-frequency performance and manufacturing cost. With lower dielectric loss, stable impedance control, and superior high-frequency transmission capability, these hybrid high-frequency PCBs have become an important foundation for modern high-speed electronic devices.

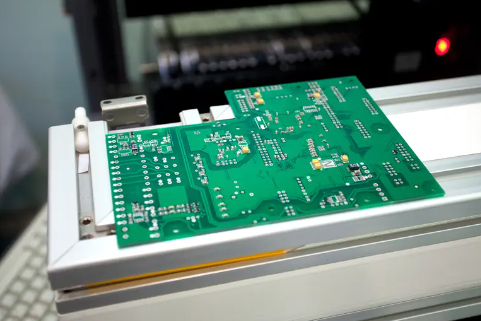

What Is a Rogers RO4350B Hybrid High-Frequency PCB?
A Rogers RO4350B hybrid high-frequency PCB is a circuit board manufactured using a hybrid lamination structure that combines RO4350B high-frequency materials with FR4 materials.
This structure helps maintain high-frequency performance while reducing overall manufacturing costs.
Main features include:
- Rogers RO4350B and FR4 hybrid stack-up structure.
- Lower high-frequency signal loss.
- More stable impedance control capability.
- Stronger high-speed signal transmission performance.
- Better thermal stability.
- Improved dimensional stability.
- Suitable for complex high-speed chip systems.
- Support for mass production and rapid prototyping.
Compared with full high-frequency material PCBs, hybrid high-frequency PCBs provide a better balance between cost and performance.
Why Is RO4350B Suitable for High-Frequency Chip Applications?
RO4350B is one of the most widely used high-performance materials in the high-frequency PCB industry.
Its main advantages include:
| Material Property | RO4350B Features | Impact on System Performance |
| Low Dielectric Constant | More stable high-frequency transmission | Improves signal integrity |
| Low Loss Factor | Reduces high-frequency signal attenuation | Enhances transmission efficiency |
| Strong Thermal Stability | More stable high-frequency operation | Reduces system risk |
| High Dimensional Stability | Smaller trace deviation | Improves impedance consistency |
| Excellent High-Frequency Performance | Supports GHz-level applications | Meets high-speed chip requirements |
| Strong Manufacturing Compatibility | More suitable for mass production | Improves manufacturing efficiency |
For high-speed chips and RF systems, material stability directly affects data transmission quality and overall system performance.
Why Are Hybrid Structures Becoming More Popular?
In many high-frequency systems, not all circuit areas require expensive high-frequency materials.
The combination of RO4350B and FR4 hybrid structures provides:
- Lower overall PCB cost.
- High-frequency performance in critical areas.
- Improved manufacturing efficiency.
- Better compatibility with complex multilayer structures.
- Easier mass production capability.
- Better balance between performance and manufacturing cost.
This structure is now widely used in 5G communication systems, RF modules, and high-speed digital equipment.
Why Is Impedance Control So Important for High-Frequency Chip PCBs?
High-speed chip systems require extremely stable signal consistency.
If impedance control becomes unstable, it may cause:
- High-frequency signal reflection.
- Data transmission errors.
- High-frequency crosstalk.
- Increased system latency.
- Reduced high-speed signal integrity.
High-precision impedance control helps to:
- Improve high-speed data stability.
- Enhance chip signal synchronization capability.
- Reduce high-frequency interference.
- Improve overall system efficiency.
- Optimize high-speed signal integrity.
In GHz-level chip systems, even small impedance deviations may affect final operating performance.
What Are the Key Manufacturing Requirements for RO4350B Hybrid High-Frequency PCBs?
High-frequency PCBs require significantly higher manufacturing precision than conventional PCBs.
Key production controls include:
- Stability of high-frequency material lamination.
- Thermal expansion matching between RO4350B and FR4.
- Precision of high-frequency trace processing.
- Copper surface roughness control.
- High-frequency impedance consistency.
- Laser drilling precision.
- Optimization of high-frequency signal return paths.
- Stability of multilayer stack-up structures.
Hybrid high-frequency PCBs require not only advanced equipment but also extensive engineering experience and strict process control.
Main Applications of Rogers RO4350B Hybrid High-Frequency PCBs
As high-frequency and high-speed electronic devices continue to evolve, RO4350B hybrid high-frequency PCBs are now widely used in many advanced industries.
- 5G Communication Equipment: Supports stable high-speed wireless signal transmission.
- Millimeter-Wave Radar Systems: Improve high-speed detection and data processing capability.
- High-Speed Servers: Meet high-speed data exchange requirements.
- Satellite Communication Equipment: Suitable for high-frequency long-distance communication systems.
- High-Speed Chip Modules: Enhance high-speed data transmission stability.
- RF and Microwave Systems: Reduce high-frequency signal loss.
- AI High-Speed Computing Equipment: Improve high-speed computing data transmission efficiency.
Why Is Low-Loss Design So Important for High-Frequency Chip Systems?
In high-frequency and high-speed systems, signal loss directly affects operational stability and data transmission efficiency.
Excessive PCB loss may cause:
- High-frequency signal attenuation.
- Reduced data transmission speed.
- Increased high-frequency heat generation.
- Reduced system stability.
- Lower chip operating efficiency.
Low-loss high-frequency PCBs help to:
- Improve high-speed signal integrity.
- Reduce transmission loss.
- Enhance long-term system stability.
- Improve data processing efficiency.
- Reduce high-frequency operating risks.
As AI servers and high-speed communication technologies continue to develop, low-loss PCBs have become an essential foundation for modern high-speed chip systems.
Why Choose Our RO4350B Hybrid High-Frequency PCB Products?
High-frequency chip systems require extremely high PCB stability, consistency, and high-speed performance.
Our RO4350B hybrid high-frequency PCB products provide the following advantages:
- Rogers RO4350B high-frequency materials.
- Support for complex hybrid high-frequency structures.
- High-precision impedance control capability.
- Lower high-frequency signal loss.
- Extensive high-frequency PCB manufacturing experience.
- Support for complex multilayer PCB structures.
- Support for rapid prototyping and mass production.
- Strict quality inspection procedures.
- Stable operation in complex environments.
We provide reliable PCB manufacturing support for 5G communication systems, millimeter-wave modules, high-speed chip systems, and RF microwave equipment.
As 5G communication, AI high-speed computing, and millimeter-wave systems continue to evolve, the demand for low-loss performance, high stability, and excellent high-speed signal integrity in high-frequency PCBs is increasing rapidly. Rogers RO4350B hybrid high-frequency PCBs have become an important part of modern electronic equipment thanks to their excellent RF performance, stable impedance control capability, and balanced cost efficiency. Topline Circuit specializes in high-frequency PCBs, HDI PCBs, and complex multilayer PCB manufacturing, providing reliable PCB solutions for high-speed chips, RF systems, 5G equipment, and advanced communication products. For more information about customized high-frequency PCB solutions, feel free to contact us.
